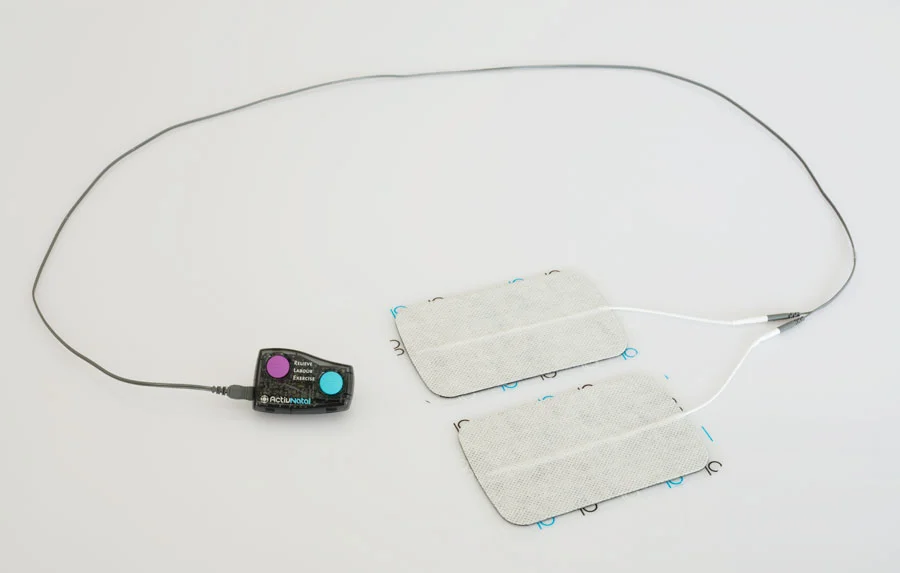

ActivNatal Labour TENS - drug-free pain management
Pain relief during pregnancy, labour and post partum
Plus a function for abdominal and pelvic floor muscle strengthening
ActivNatal intended purpose
Australian Register of Therapeutic Goods (ARTG) listing number #174871
The ActivNatal has been approved for use during pregnancy, childbirth and the post-partum period, as follows:
Pain relief after C-section
Repairing and strengthening pelvic floor muscles
Exercise to strengthen abdominal sheet muscles and help repair separation, if any
Aches and pain relief, during or after pregnancy
Pre-labour and early stage labour preparation
Obstetric TENS pain relief
Many women find the pain relief offered by labour TENS beneficial and satisfactory
They draw comfort from the thought that they are reducing, or potentially reducing, their intake of analgesic drugs
However, there is a limited number of published clinical trials researching TENS use for labour
Modes of operation and electrode placement
RELIEVE - Site of pain or same dermatome
LABOUR - Either side of lumbar spine
EXERCISE - Pelvic floor or abdominal muscles
LABOUR mode is a strong TENS stimulus, i.e. a constant frequency at 50 Hz, with maximum output 60 volts, in 30 * 2 volt increments.
When your labour pains become intense and close together, you select LABOUR mode and ride the wave of each contraction by increasing the intensity to your desired level. You are in control.
We supply a pendant attachment so you can wear the device around your neck, move when you want to - and generally benefit from an active labour.
Electrodes are placed either side of the spine - usually at the bottom of the lumbar region but you can position them slightly higher for variation.
If taking a bath or shower, YOU MUST REMOVE the entire device.
Pre-labour preparation with TENS
Use RELIEVE mode before you leave home for the hospital or birthing centre. It will help to release the body's natural well-being hormone beta-endorphin and help you to benefit from a relaxed birthing experience.
Electrodes can be placed on the lower back.
During pregnancy and after childbirth
ActivNatal has been designed for antenatal and post-natal use, as well as labour pain use. In one small, compact unit we have included electrotherapy functionality, to help mothers cope with some of the painful issues surrounding their pregnancy, and in that critical post-natal recovery period. The RELIEVE mode may be used as part of a pain management plan during and after pregnancy; for example:
Low back pain
Aching legs - circulation
Electrodes are placed at the site of the pain or on the same local area; muscles must not twitch.
EXERCISE mode - 6 plus weeks post partum
We have included an EMS mode designed for muscle exercise e.g.:
Strengthening the muscles of the pelvic floor (after pregnancy)
Rehabilitating the abdominal sheet muscles - helping to repair any separation that may have occurred during pregnancy and re-establishing muscle tone
Six to eight weeks after childbirth your doctor will probably give you the "all clear" to resume normal physical activity. This is the time you may commence rehabilitating your abdominal sheet and pelvic floor muscles.
Place one small electrode on the perineum, i.e. the surface area between the anus and the vulva. Place one large electrode over the sacrum, i.e. the large, triangular bone at the base of the spine and above the coccyx.
Place the electrodes above and below the centre of the abdomen OR place electrodes either side of the abdominal centre line.
ActivNatal therapy guidelines
|Purpose||Mode||Intensity||Time||How often / when|
|Ante natal and post natal|
|Musculoskeletal pain relief||RELIEVE||Low to medium||Minimum 60 minutes||On demand|
|Muscle tension, stress||RELIEVE||Low||Several hours||On demand|
|Circulation, swollen ankles||RELIEVE||Low||Minimum 60 minutes||Each evening|
|Early labour||RELIEVE||Low to medium||Several hours||Before you leave for hospital|
|Stage 1 labour to transition||LABOUR||High - increase intensity with contraction||Duration of contraction||With contraction|
|Post natal – 6 or more weeks after childbirth|
|Pelvic floor||EXERCISE MODE||Start low; gradually increase||20 to 30 minutes||Daily|
|Abdominal Sheet||EXERCISE MODE||Start low; gradually increase||20 to 30 minutes||Daily|
$70 for 5 weeks (+PH)
ActivNatal is wearable and versatile, to allow you to manage your own active childbirth.
ActivNatal is suitable for pain relief during and after pregnancy, for TENS labour pain relief, and for post natal muscle recovery. You can hire or buy the ActivNatal labour TENS.
"We never made it to hospital and my husband safely delivered our baby girl on our bed! I am so thankful that I had an ActivLife Tens Machine providing pain relief from powerful contractions. The ability to adjust levels on the machine helped to keep me calm and feel in control. I don't quite know how I would have got through without the Tens Machine. Thank you so much" .....Rebecca Stewart, April 2016
DO NOT place electrodes on your abdomen during pregnancy or labour
30 intensity settings; Maximum output of 60 volts
Bi-phasic square wave signal; pulse width of 200 micro seconds
RELIEVE mode - 10 to 50 Hz, Modulation cycle < 1 second
LABOUR mode - constant 50 Hz
EXERCISE mode - 10 to 50 Hz, surging 6 secs ON, 12 secs OFF
